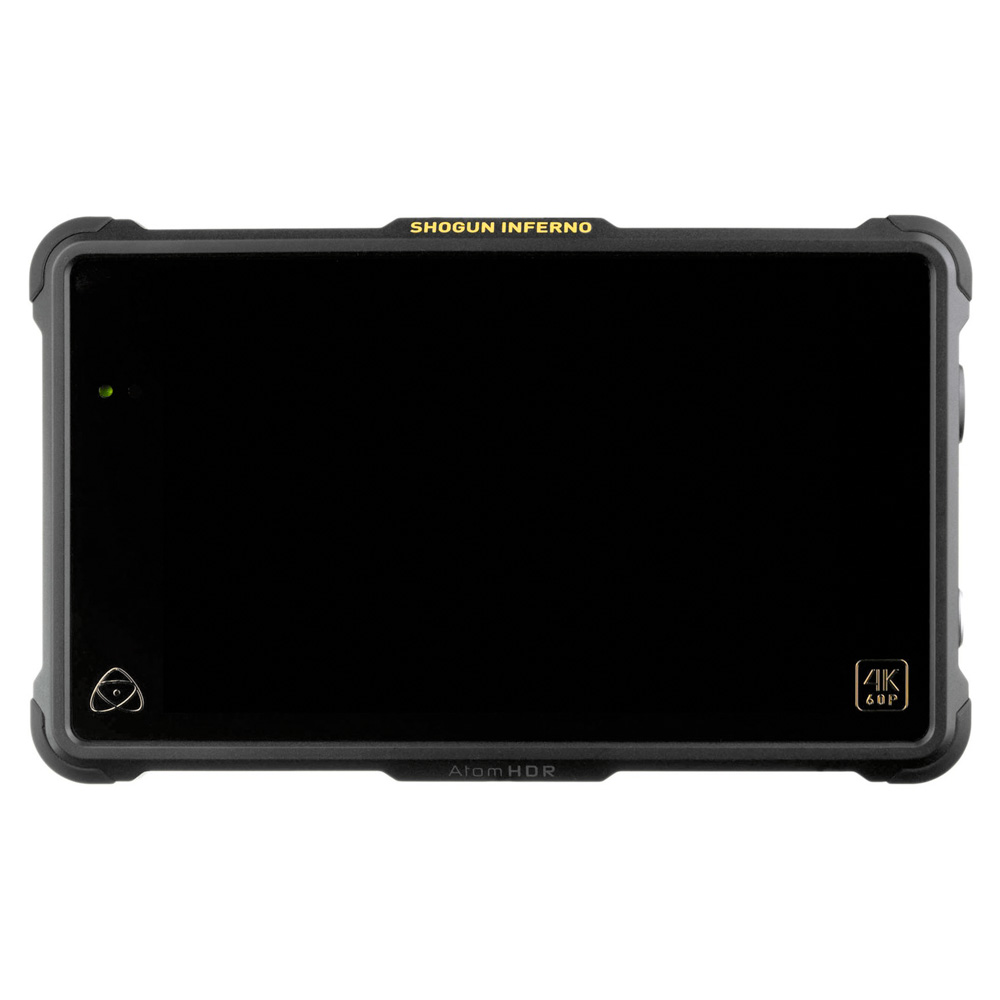

Atomos Shogun Inferno Monitor/Recorder
Downloadable Specifications coming soon
– 7″ 1920 x 1200 10-bit touchscreen with AtomHDR technology
– Ultra HD HDMI & 12G-SDI inputs to support up to UHD 4K (3840 x 2160) @ 60 fps in ProRes & DNxHR, and 1080p recording up to 240 fps.
– Supports Quad 3G-SDI input and supports DCI 4K (4096 x 2160) raw video streams over SDI (from select Sony & Canon cameras), encoding it as ProRes/DNxHR files.
– Supports custom 3D LUTs (.cube format)
– Anamorphic de-squeeze: 2x, 1.5x, 1.33x
MODEL
Atomos Shogun Inferno
DISPLAY SIZE
7.1″ / 18.0 cm
RESOLUTION
1920 x 1200
ASPECT RATIO
16:9
TOUCHSCREEN
Yes
I/O
1 x HDMI Type A (HDMI 2.0) Output
1 x BNC (12G-SDI) Output
1 x HDMI Type A (HDMI 2.0) Input
4 x BNC (3G-SDI) Input
1 x Barrel Power Input
1 x 3.5 mm Headphone Output
1 x 10-Pin LEMO Input/Output
1 x Genlock/LTC (BNC)
1 x LANC (2.5 mm)
SUPPORTED VIDEO INPUTS
HDMI (8/10-Bit 4:2:2)
UHD 4K: 24/25/30/50/60
1080p: 24/25/30/50/60/120/240
1080i: 50/60
720p: 50/60
SDI (8/10-Bit 4:2:2)
DCI 4K: 24/25/30/50/60
1080p: 24/25/30/50/60/120
1080PsF: 24/25/30
1080i: 50/60
720p: 50/60
MEDIA
2.5″ SSD Mags
SUPPORTED CODECS
4096 x 2160
ProRes Raw, Raw HQ, 422, LT, HQ at up to 60 fps
DNxHR HQ, HQX, SQ, LB at up to 60 fps
3840 x 2160
ProRes 422, LT, HQ at up to 60 fps
DNxHR HQ, HQX, SQ, LB at up to 60 fps
1920 x 1080
ProRes 422, LT, HQ at up to 240 fps
DNxHD 220x, 145, 36 at up to 240 fps
POWER
DC Input Power – 6.2 to 16.8 VDC
Battery Type – 2 x L-Series
Power Consumption – 10 W (Typical) / 24 W (Maximum)
DIMENSIONS (WxHxD)
8.4x5x1.8″ / 21.4×12.7×4.5cm
WEIGHT
1.4 lb / 0.65 kg
2.4 lb / 1.09 kg (including Battery & Recording Media)
