Blackmagic Video Assist 4K 7″ Monitor
Downloadable Specifications coming soon
MODEL
Blackmagic Video Assist 4K 7″ Monitor
DISPLAY SIZE
7″ (17.8 cm) Touchscreen LCD
RESOLUTION
1920 x 1200

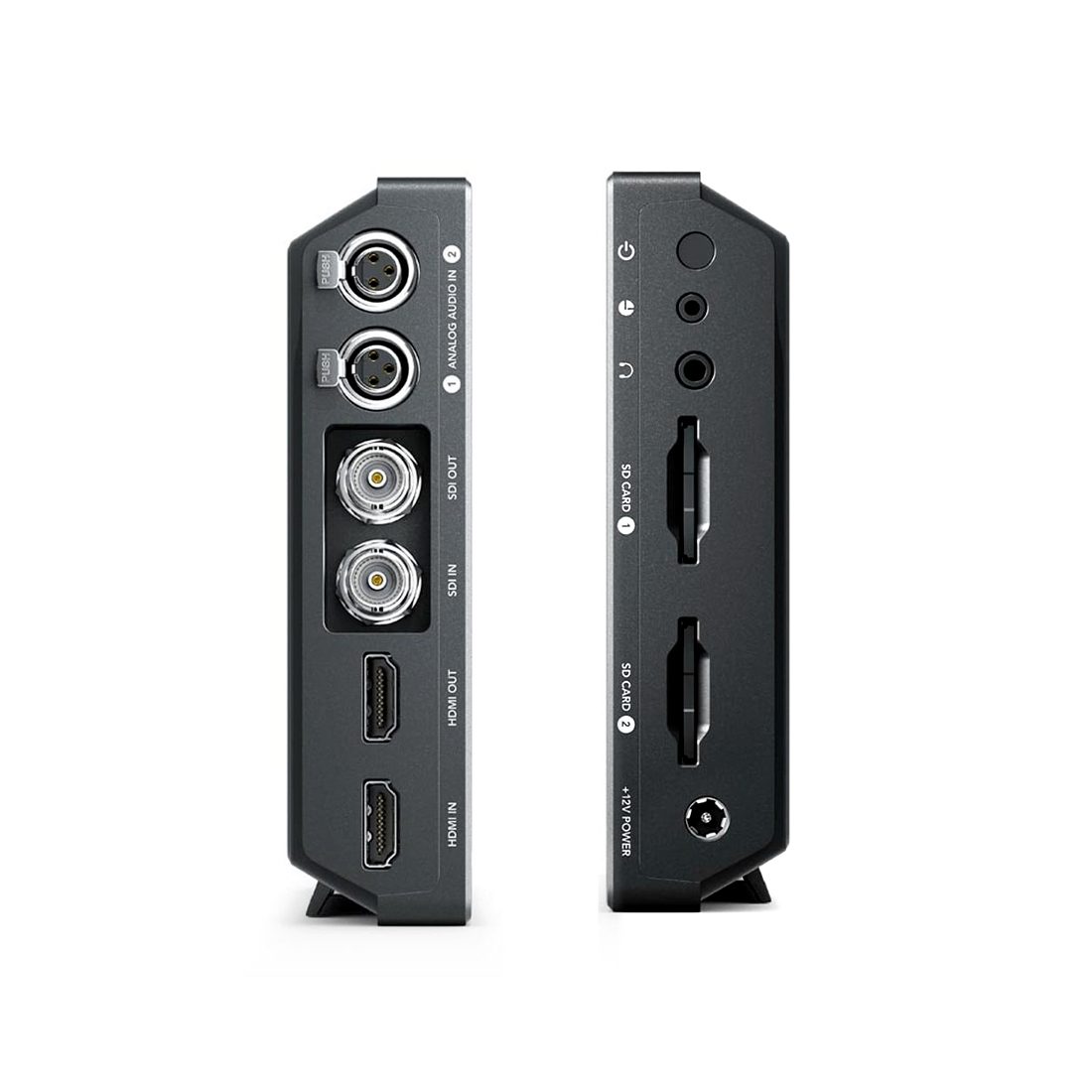

INPUTS
1 x SD/HD/3G/6G-SDI (BNC connector)
1x HDMI 2.0a
1x Analog Audio In
1x +12V External Power Input
1x LANC (for Record Start & Stop)
1x Mini-B USB 2.0
OUTPUTS
1 x SD/HD/3G/6G-SDI (BNC connector)
1x HDMI 2.0a
1x 3.5mm stereo analog headphone jack
SUPPORTED VIDEO INPUTS
SDI Video Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| SDI Compliance | SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 425M 2084 |
| SDI Metadata Support | HD RP188 |
| Audio Sampling | Television standard sample rate of 48 kHz and 24‑bit |
| Video Sampling | 4:2:2 YUV |
| Colour Precision | 10-bit |
| Colour Space | REC 601, REC 709 |
| Multiple Rate Support | SDI and HDMI switches between 270 Mb/s SD, 1.5 Gb/s HD, and 3.0 Gb/s 60P HD plus 6.0 Gb/s 30p Ultra HD |
HDMI Video Standards
| SD Video Standards | 525i59.94 NTSC, 625i50 PAL |
| HD Video Standards | 720p50, 720p59.94 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60 |
| Ultra HD Video Standards | 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
| HDMI Colour Precision | 10-bit |
| Copy Protection | HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content |
MEDIA
2x SD Card Slots (an HFS+ or exFAT formatted UHS-I or UHS-II card)
SUPPORTED CODECS
ProRes 422 HQ, ProRes 422, ProRes 422 LT, ProRes Proxy
DNxHD 220x, DNxHD 145, DNxHD 45, DNxHD 220x MXF, DNxHD 145 MXF, DNxHD 45 MXF
DNxHR HQX MXF, DNxHR HQX, DNxHR SQ, DNxHR LB, DNxHR SQ MXF, DNxHR LB MXF
POWER
1x 12volt
1x Canon LP-E6 type batteries
WEIGHT
