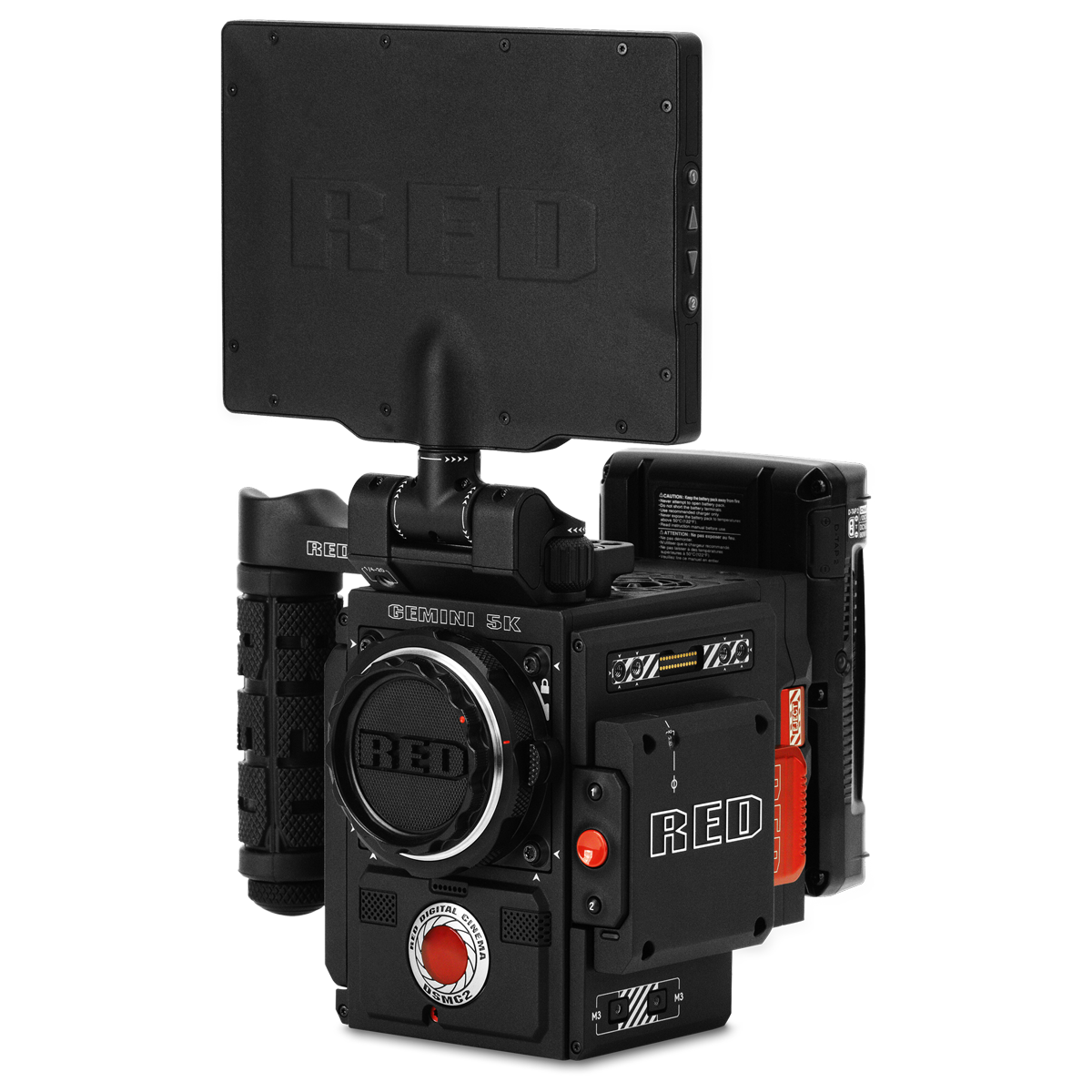

RED DSMC2 GEMINI 5K S35 Camera
The DSMC2 GEMINI is RED’s highest sensitivity sensor, offering significantly increased performance in low-light settings and improved performance in shadows. A DSMC2 GEMINI is capable of data write speeds of 300 MB/s, and can simultaneously record in REDCODE RAW and Apple ProRes or Avid DNxHR/HD. Tack on interchangeable OLPFs and lens mounts and DSMC2 GEMINI gives you the ultimate control over your footage. Plus is now Netflix approved!
Model
Red DSMC2 GEMINI 5K
Sensor
GEMINI 15.4 Megapixel Dual Sensitivity CMOS
Lens Mount
PL / EF Mount
Sensor Sensitivity modes
Standard: Use in normal shooting conditions in which you would expose near ISO 800. Provides the best highlight retention.
Low Light: Use in lower light conditions in which you would expose for ISO 2500 and higher. Provides the cleanest shadow detail.
Sensor Sensitivity mode is not metadata. Each mode affects the RAW data and is “baked-in” as image data in the recorded file. However, the ISO setting is still captured as metadata and can be adjusted in post-production.
Recording Format
Redcode 16-bit RAW
ProRes 12-bit 4:4:4:4 XQ / 4:4:4:4
ProRes 10-bit 4:2:2 HQ / 4:2:2 / 4:2:2 LT
DNxHR 12-bit HQX
DNxHR 8-bit HQ / SQ / LB
DNxHD 10-bit 444
DNxHD 8-bit HQ / SQ / LB
File Format
R3D
MOV
Maximum Frame Rate (PAL)
| 5K Full Format 1.7:1 | 75 fps |
| 5K Full Format | 96 fps |
| 5K Full Format 2.4:1 | 120 fps |
| 4K Full Format | 120 fps |
| 4K Full Format 2.4:1 | 150 fps |
| 3K Full Format | 150 fps |
| 3K Full Format 2.4:1 | 200 fps |
| 2K Full Format | 240 fps |
| 2K Full Format 2.4:1 | 300 fps |
Media
| Internal Recording | Red Mini-Mag |
Audio Recording Format
2CH 24-bit 48 kHz
Batteries
V-Lock
Weight
3.35 lbs (BRAIN with Integrated Media Bay)
