Products Accessories Monitoring Onboard Monitors SmallHD 503 UltraBright 5″ Onboard Monitor

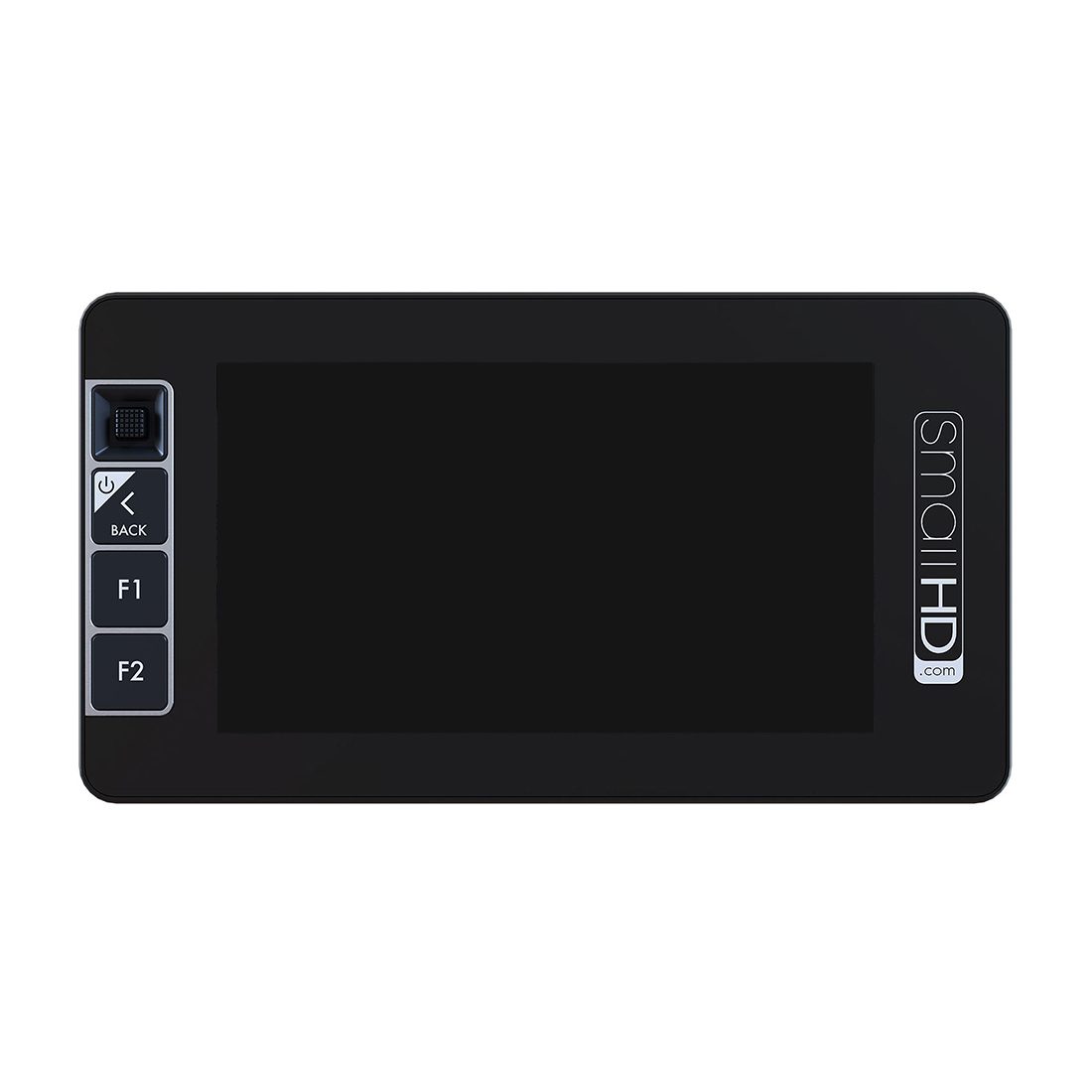

Full HD 5-inch LCD 2200 nits Brightness monitor. The most effective tool for HDR Previewing, 3D LUT support and exposing your image with small HD’s updated efficient OS system.
SmallHD 503 UltraBright MON-503U
5″ / 12.7cm (diagonally)
1920×1080
443 ppi
2200 nits
1000:1

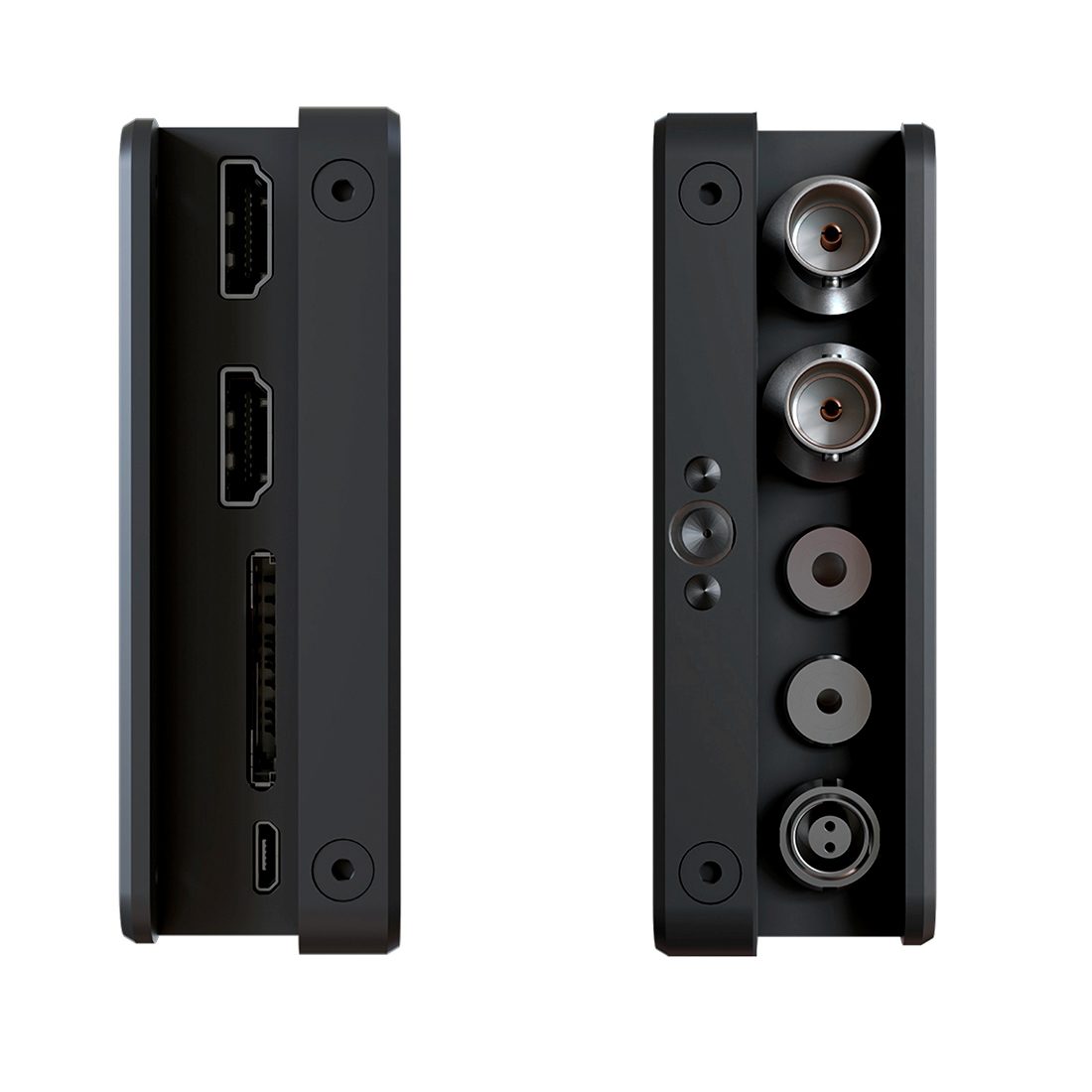

2x BNC (3G/HD/SD SDI)
1x HDMI Type-A
1x 2-pin Lemo (Power)
1x Micro USB
1x BNC (3G/HD/SD SDI)
1x HDMI Type-A
1x 3.5mm Mini-Jack (Audio Monitoring)
3G-SDI | 1920×1080 | 50/59.94/60p
50/59.94/60i |
YCC
4:2:2 10-bit |
HD-SDI | 1920×1080 | 23.98/24/25/29.97/30p
23.98/24/25/29/.97/30PsF 50/59.94/60i |
YCC 4:2:2-10-bit |
1280×720 | 23.98/24/25/29.97/30/50/59.94/60p
50/59.94/60i |
YCC 4:2:2 10-bit | |
SD-SDI | 720×576 | 25i | YCC 4:2:2 10-bit |
640×480 | 29.97i | YCC 4:2:2 10-bit | |
HDMI | 1920×1080 | 23.98/24/25/29.97/30/50/59.94/60p
25/29.97/30/50/59.94/60i |
RGB 4:4:4:4 8/10/12-bit |
1920×1080 | 23.98/24/25/29.97/30/50/59.94/60p
25/29.97/30/50/59.94/60i |
YCC 4:4:4:4 8/10/12-bit | |
1280×720 | 23.98/24/25/29.97/30/50/59.94/60p
100/119.88/120p |
YCC 4:2:2 8-bit | |
720×576 | 50/100p
25/50/100/200i |
YCC 4:2:2 8-bit | |
640×480 | 59.94/60/119.88/120p
23.98/24/29.97/30/59.94/60/119.88i 120/239.76/240i |
YCC 4:2:2 8-bit |
3G-SDI | 1920×1080 | 50/59.94/60p
50/59.94/60i |
YCC 4:2:2 10-bit |
HD-SDI | 1920×1080 | 23.98/24/25/29.97/30p
23.98/24/25/29.97/30PsF 50/59.94/60i |
YCC 4:2:2-10-bit |
1280×720 | 23.98/24/25/29.97/30/50/59.94/60p
50/59.94/60i |
YCC 4:2:2 10-bit | |
SD-SDI | 720×576 | 25i | YCC 4:2:2 10-bit |
640×480 | 29.97i | YCC 4:2:2 10-bit | |
HDMI | 1920×1080 | 23.98/24/25/29.97/30/50/59.94/60p
25/29.97/30/50/59.94/60i |
RGB 4:4:4:4 8/10/12-bit |
1920×1080 | 23.98/24/25/29.97/30/50/59.94/60p
25/29.97/30/50/59.94/60i |
YCC 4:4:4:4 8/10/12-bit | |
1280×720 | 23.98/24/25/29.97/30/50/59.94/60p
100/119.88/120p |
YCC 4:2:2 8-bit | |
720×576 | 50/100p
25/50/100/200i |
YCC 4:2:2 8-bit | |
640×480 | 59.94/60/119.88/120p
23.98/24/29.97/30/59.94/60/119.88i 120/239.76/240i |
YCC 4:2:2 8-bit |
1x ¼”-20 Thread on Top of Monitor
1x ¼”-20 Thread on Bottom of Monitor
1x ¼”-20 Thread on back of Monitor @ Bottom Center
15.2 oz / 430.91g
3.36″ x 6.16″ x 1.13″ / 8.53 x 15.65 x 2.87cm
