Sony Venice Rialto II Extension System

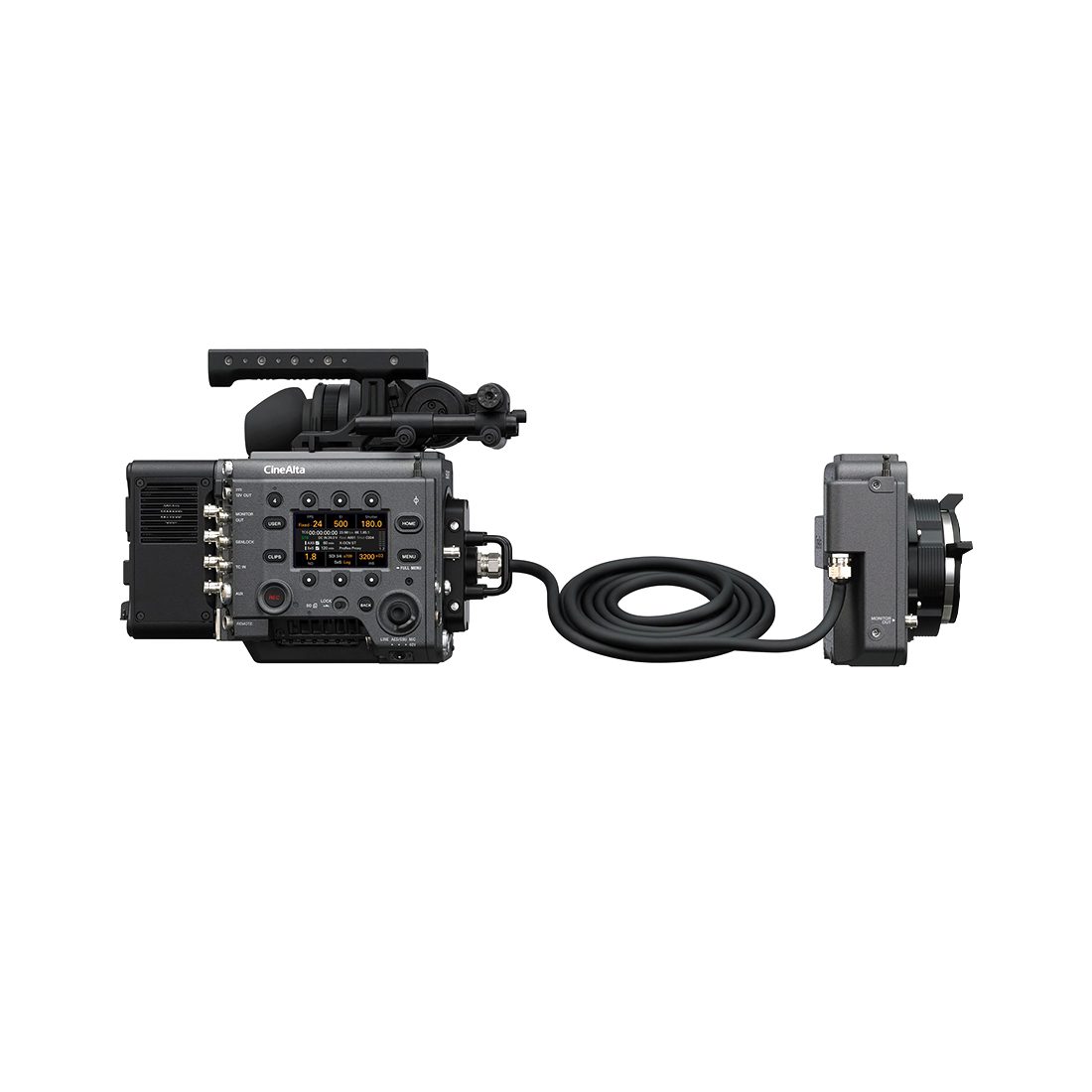

The Sony (Rialto) Extension System allows the camera body to detach from the sensor block/lens mount with no degradation in image quality and to extend the sensor block by 3 m (10 ft) or 12 m (39 ft).
Attach the covers, connect the cable and you’re ready to roll in under ten minutes. The Sony Rialto enables the Sony Venice to become highly mobile and discreet for many mounting setups and filming scenarios including use with gimbals, handheld stabilisers, underwater and helicopter housings, and 3D/VR rigs, as well as in tight and unconventional spaces, such as in vehicles, on cranes or U-Cranes.
Model
CBK-3610XS
Camera Compatibility
Sony Venice Cinema Camera
Cable Length
2.7 m (9.8 ft) or 5.5 m (18 ft) when utilising the supplied extension cable.
Outputs
Camera Head
– HD-SDI out (BNC)
– 24 -V power out (Fischer 3pin)
Camera Body Plate
– 24V DC input connector (Fischer 3pin)
– HD-SDI input (BNC)
* When 12V DC output is required, the Hirose 4pin connector on the Venice camera can be utilized by using Hirose 4pin to Fischer 3pin cable.
Power consumption
Approx. 2.4 W (with 2.7 m extension)
Approx. 3.9 W (with 5.5 m extension)
Weight
CBK-3610XS
2.75 kg / 6lb (excluding supplied accessories)
Imager block
PL: Approx. 1.9 kg (4 lb 3.0 oz)
E: Approx. 1.4 kg (3 lb 1.4 oz)
Advanced Features
The Sony Rialto preserves full use of the advanced features the VENICE offers, such as its built-in 8-step glass ND filter system, Dual Base ISO, and more.
