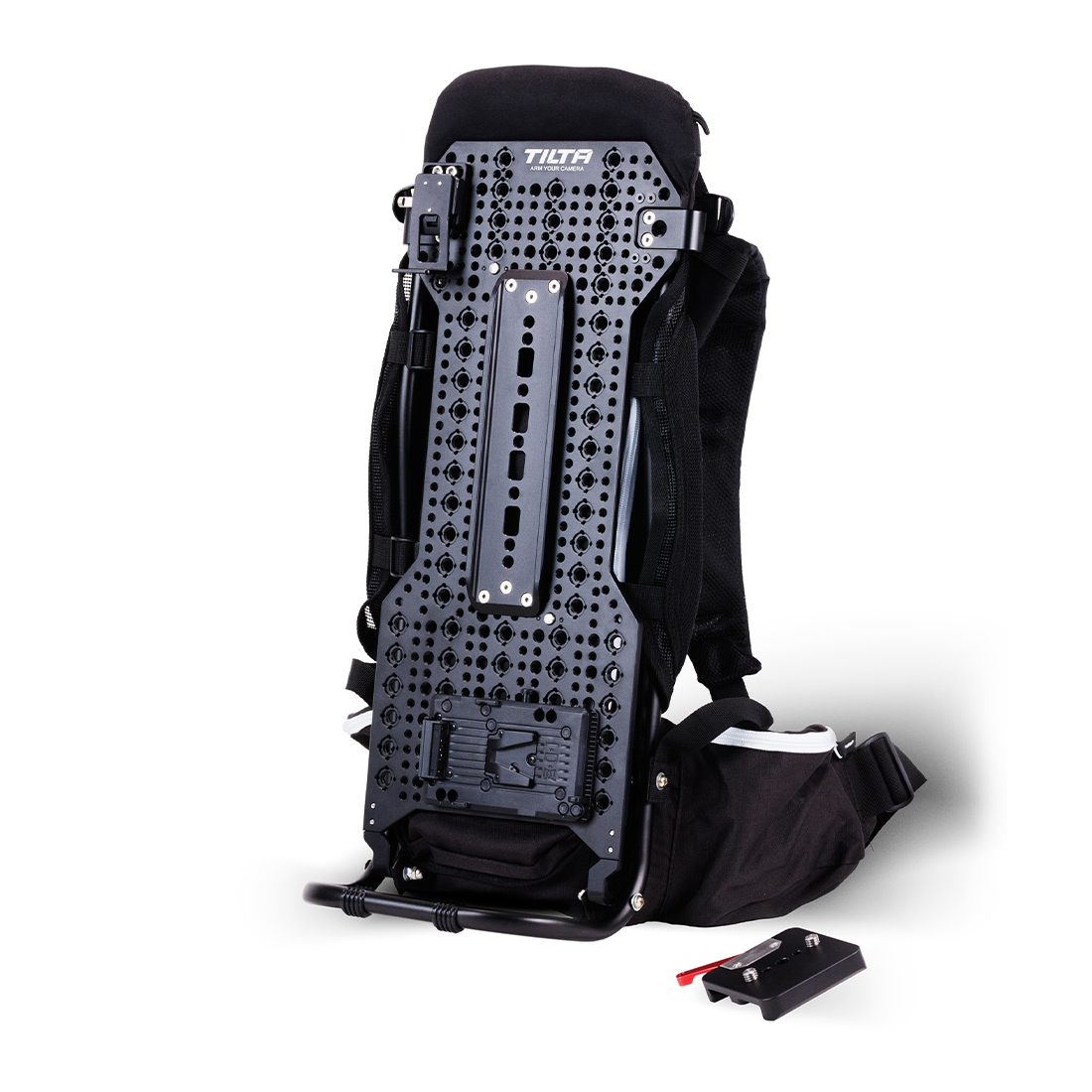

Tilta Sony Venice Rialto Backpack Module (V Mount)
The Cage & Backpack System for Sony VENICE Rialto Extension from Tilta bundles a dedicated backpack for your Sony VENICE camera wit a dual wooden-grip cage for your tethered Rialto extension unit. Both the cage and the backpack include battery plates for using long-lasting Gold Mount batteries. A quick-release ARRI-standard baseplate and relevant cables are also included in this system.
Model
CBK-3610XS
Camera Compatibility
Sony Venice Cinema Camera
Cable Length
2.7 m (9.8 ft) or 5.5 m (18 ft) when utilising the supplied extension cable.
Outputs
Camera Head
– HD-SDI out (BNC)
– 24 -V power out (Fischer 3pin)
Camera Body Plate
– 24V DC input connector (Fischer 3pin)
– HD-SDI input (BNC)
* When 12V DC output is required, the Hirose 4pin connector on the Venice camera can be utilized by using Hirose 4pin to Fischer 3pin cable.
Power consumption
Approx. 2.4 W (with 2.7 m extension)
Approx. 3.9 W (with 5.5 m extension)
Weight
CBK-3610XS
2.75 kg / 6lb (excluding supplied accessories)
Imager block
PL: Approx. 1.9 kg (4 lb 3.0 oz)
E: Approx. 1.4 kg (3 lb 1.4 oz)
Advanced Features
The Sony Rialto preserves full use of the advanced features the VENICE offers, such as its built-in 8-step glass ND filter system, Dual Base ISO, and more.
